The Galveston Bay Barrier System is a comprehensive initiative designed to safeguard the upper Texas coast from the threats posed by storm surges. This ambitious project, which constitutes the largest component of the Coastal Texas Project, accounts for approximately 85 percent of the authorized budget. The Galveston County Public District (GCPD) is designated as the local sponsor for all seven features of this system, a responsibility that sets it apart from broader agencies that juggle multiple priorities. This specialized district is solely focused on enhancing coastal resilience. Each of the seven elements targets a specific vulnerability in the region’s defenses, collectively forming a robust barrier against storm surge impacts before they reach populated areas and critical infrastructure behind the bay.
The Bolivar Roads Gate System
The cornerstone of the barrier system is the Bolivar Roads Gate, which will be constructed to span the waterway between Galveston Island and Bolivar Peninsula, the primary channel through which storm surges enter the bay. In anticipation of a storm, the gates will close, effectively preventing surges from inundating the areas behind them. Jacobs Engineering has been selected to design this critical structure, which is projected to become the largest flood gate system globally upon completion. For those interested in a detailed analysis, comprehensive project specifics covering all seven features are available for exploration.
Beach and Dune Restoration
Before storm surges reach the gate, they will first encounter restored beaches and dunes that line the outer coast. Plans include a dune system extending 25 miles along Bolivar Peninsula and another covering 18 miles along West Galveston Island. These natural barriers are instrumental in dissipating wave energy and diminishing surge intensity before it approaches the bay. HDR Engineering has been awarded the design contract for these restoration efforts, which are the initial features slated to enter formal design phases. Additionally, revitalized dunes enhance the resilience of coastal ecosystems, aiding in their recovery following storm events.
Galveston Seawall Improvements and the Ring Barrier
Two critical features focus on bolstering Galveston Island’s defenses against surges that may circumvent outer protections. The existing seawall along the southern shore of the island is set for modernization to align with current protective standards. Complementing this, the Galveston Ring Barrier aims to fortify vulnerable areas inadequately protected by existing infrastructure on the island’s backside. Together, these enhancements will envelop one of Texas’s most densely populated coastal regions in a more robust protective framework, ensuring that storm surges cannot breach or bypass the island.
Interior Gate and Pump Stations
Two components of the system are designed to mitigate surge impacts entering through internal waterways rather than the primary bay entrance. The Dickinson Bay Gate and Pump Station will protect communities adjacent to Dickinson Bay from storm surges, while the Clear Lake Gate System and Pump Station will safeguard the Clear Lake area, which is home to numerous residences, businesses, and commercial developments. These features integrate physical gates with pump stations to effectively manage water accumulation behind the barriers after a storm passes. The role of pump stations is crucial, as they ensure that floodwaters can be drained, addressing vulnerabilities that the outer defenses may not cover.

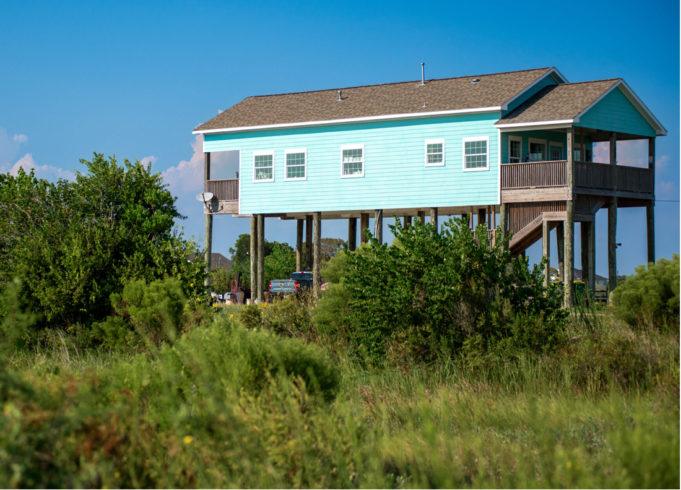

Home Elevation and Floodproofing
The seventh feature concentrates on individual properties rather than large-scale infrastructure. Home elevation and floodproofing provide residents in at-risk areas with tangible means to lessen their vulnerability to surge damage. Properties situated in low-lying zones can be elevated above anticipated surge levels, while floodproofing measures can be adopted where elevation is not feasible. This aspect acknowledges that even the most sophisticated barrier system cannot guarantee protection for every property in every scenario. It introduces a personal element to the overall defense strategy, allowing residents to take proactive steps while larger construction projects are still in the planning stages.
The Galveston Bay Barrier System comprehensively addresses storm surge challenges, ranging from substantial bay gates to individual property protections. Each of the seven components plays a distinct role and is designed to function synergistically within the broader framework. The upper Texas coast faces significant and persistent risks, and this multifaceted approach aims to tackle these threats from various angles. As design efforts advance, each feature is on track to move toward implementation. The communities, businesses, and industries along this coastline are relying on this project to fulfill its promise. With design work progressing, meaningful advancements are finally coming to fruition after years of meticulous planning.
